We wii provide the highest quality sleeper replacement machine and maintenance services . The probability of our railway tie replacement breaking down is very low. According to customer feedback, under normal working conditions, there will be no failurﷺe.

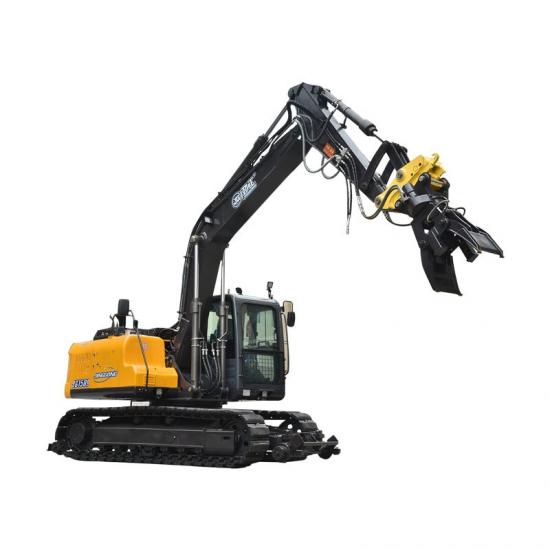

Ji▨nggong Sleeper Replacement Machineꦬ
l Features:
1. Development Patent: sleeper replacement machine rotates flexibly to improve work efficiency
2. Strong drive system, high carrying capacity, great tractive force to resist impact
3. Variable frame that can be easily extended and retracted by operating the joystick
﷽
4. Equipped with multi-way valve, hydraulic system, walking motor from South Korea, advanced and reliable
🐎
l Main Parameters:
|
(Length*width*height) travel position |
7500*2500*3500mm |
|
Machine weight |
13000kg |
|
Rated Power |
102kw |
l Certificates:
Q:How can I get the sleeper replacement machine discount?
A:The discount is up to your order quantity. Small order is accepted as well.
Your rolling order can help you get a discount.
The raw material and custom logo will influence the price.
Q:What about your after-sale service?
A:We reply every enquiry within 12 hours and try our best to meet the demand of the customers ,will consult and follow the relevant sellings and handlings.
Q:Price is a sensitive topic. How do you comment on your price level?
A:Our product price to match product quality and have high quality ,we would like to establish nice and long business relations with customers .
| Sleeper Replacement Machine Specification | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Angle of rotation of The Shear | 360° | |||||||||
| Max.Opening Distance of The Shear | 650mm | |||||||||
| Length Of Hydraulic Shear Blade | 2-2*185mm | |||||||||
| Maximum Cutting Force (in middle of blade) | 350KN | |||||||||
| Maximum Lifting Height of Car Pressing Hand | 2000mm | |||||||||
| Maximum Distance of Car Pressing Hand Working | 4780mm | |||||||||
| DIMENSION | (Length*width*height)Transport Dimensions | 7500*2500*3500mm | ||||||||
| Roller gauge | 2850mm | |||||||||
| Track gauge | 1960mm | |||||||||
| Width Of Crawler | 500mm | |||||||||
| Ground clearance of counterweight | 940mm | |||||||||
| Min ground clearance | 420mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 13000kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 102kw | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 28Mpa | |||||||||
| Hydraulic system flow | 260L/min | |||||||||
| Variable piston pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| Walking speed (High speed/Low speed) | 5/2.9km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Full circle swinging time | 5s | |||||||||
| Swing Overload Pressure | 25Mpa | |||||||||
| Fqt Fuel Quantity | ≥8L/h | |||||||||
| Capacity Of The Fuel Tank | 200L | |||||||||
| Hydraulic Tank Capacity | 200L | |||||||||
